Flexible Couplings

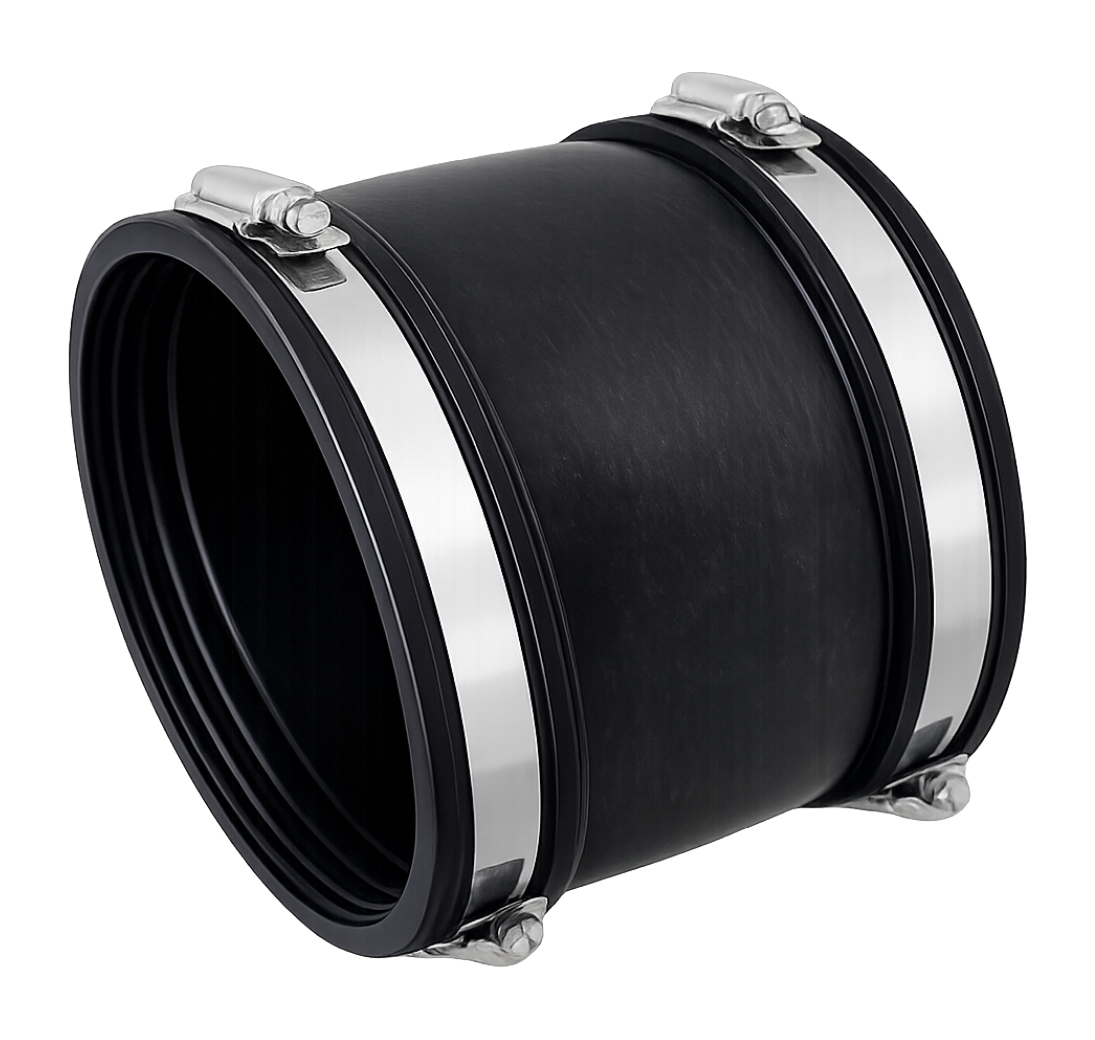

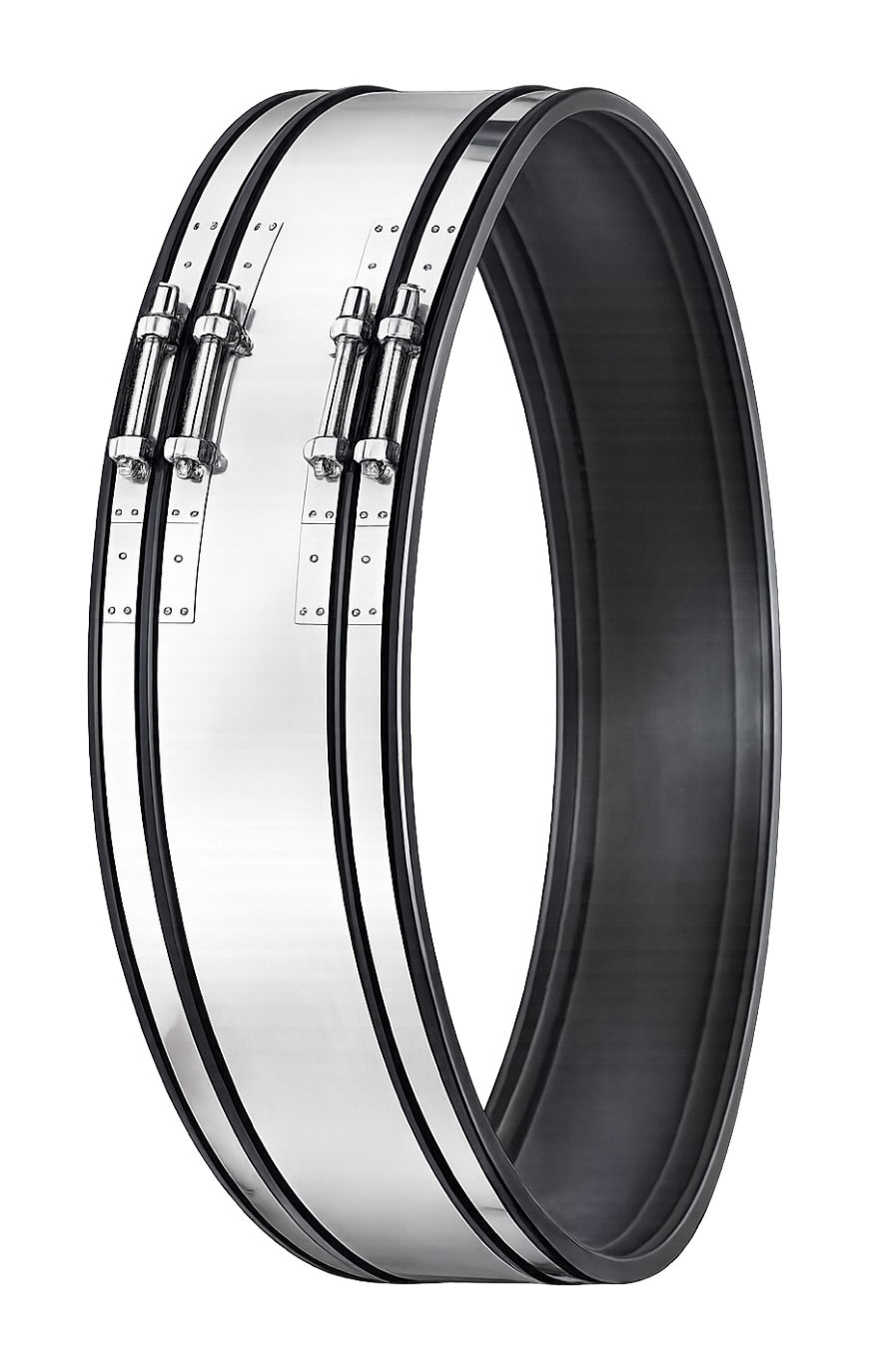

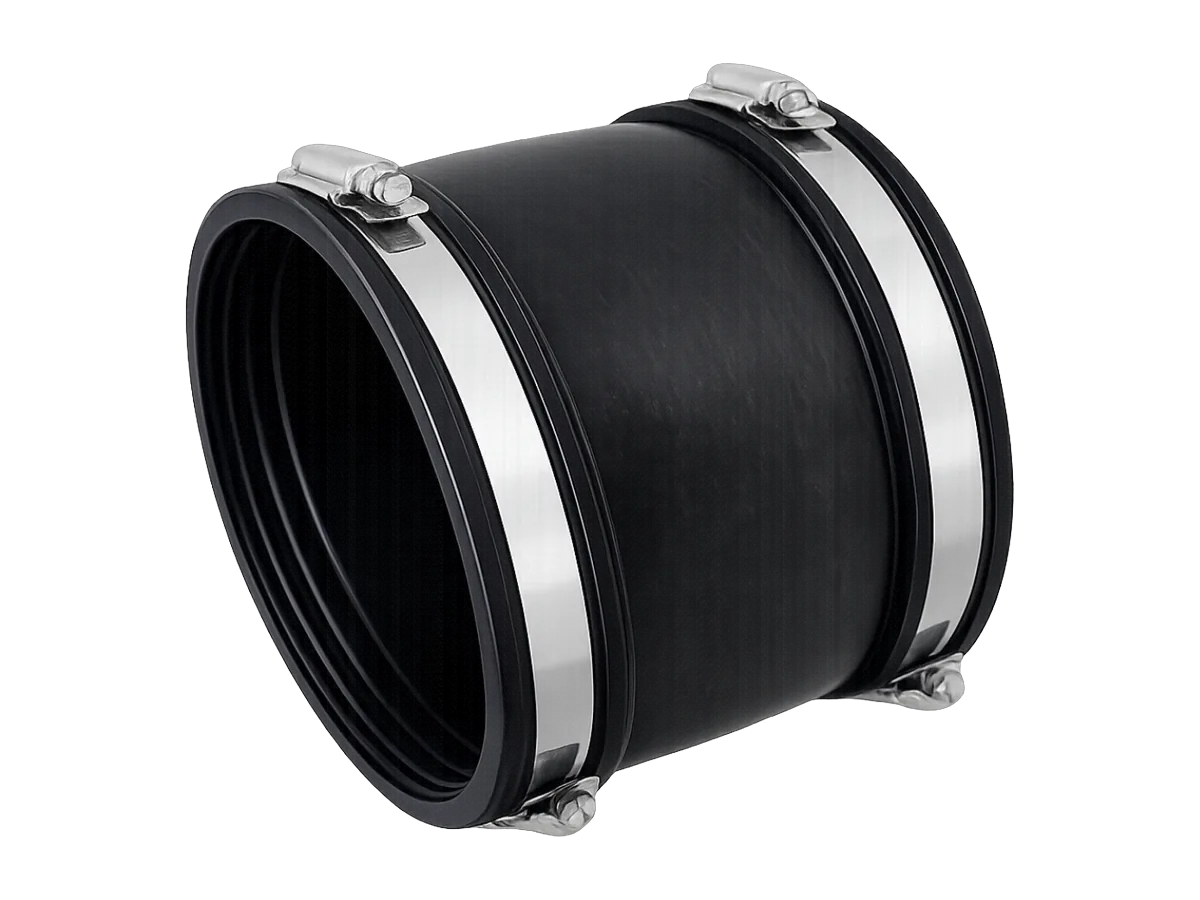

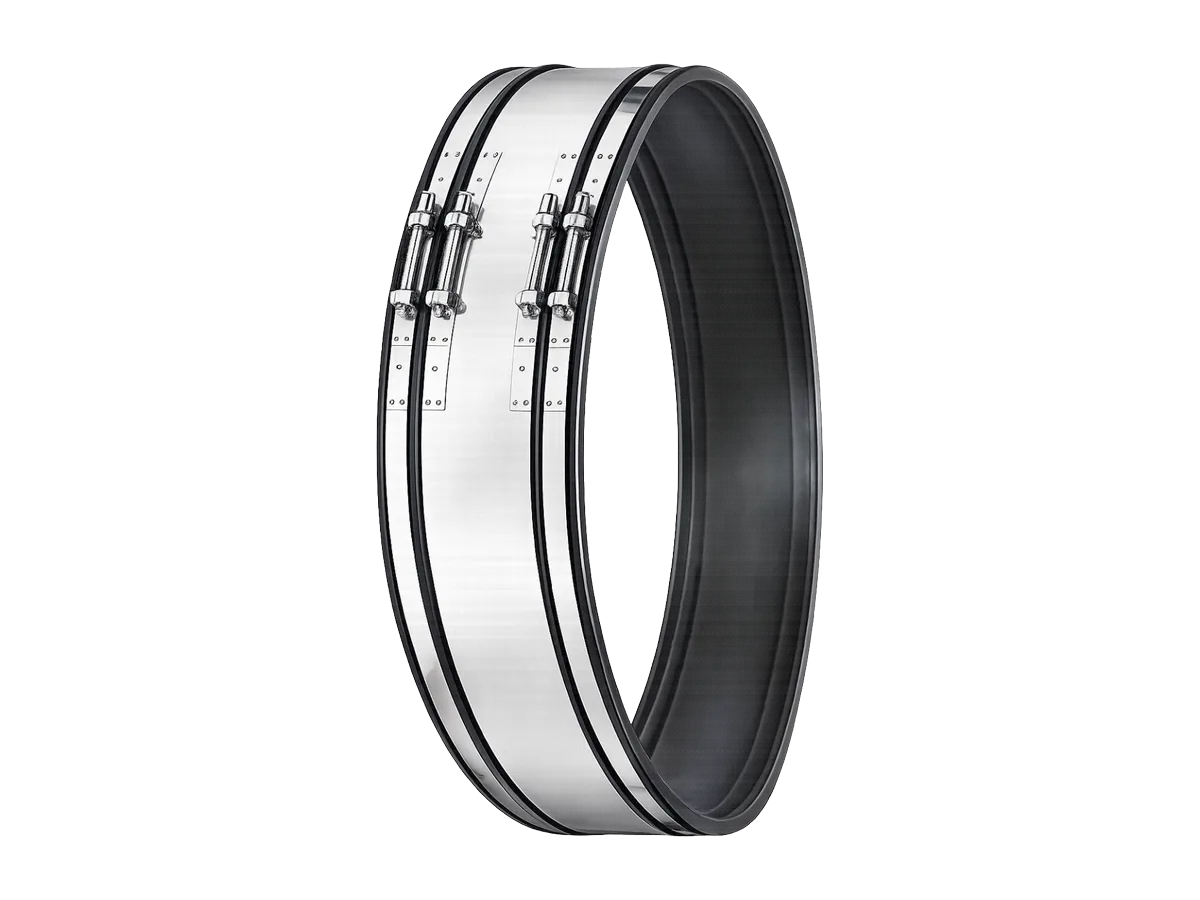

Flexible rubber couplings that join plain-ended pipes of nearly any material — an EPDM sleeve tightened with stainless clamp bands, supplied in Standard (RSC), Large, Drain and Adaptor types for sewers, drains, repairs and pipes of differing diameters.
Technical Data
| Flexible Couplings — specification | |
|---|---|
| Size range | 65–620 mm (Standard RSC) |
| Sleeve | EPDM rubber |
| Bands | 1.4301 (304) / 1.4401 (316) stainless |
| Pressure | 2.5 bar · jetting resistance 120 bar |
| Temperature | -10 to +60 °C constant |
| Standards | EN 681-1 · EN 295-4 · WIS 4-41-01 |
Datasheet & Documents

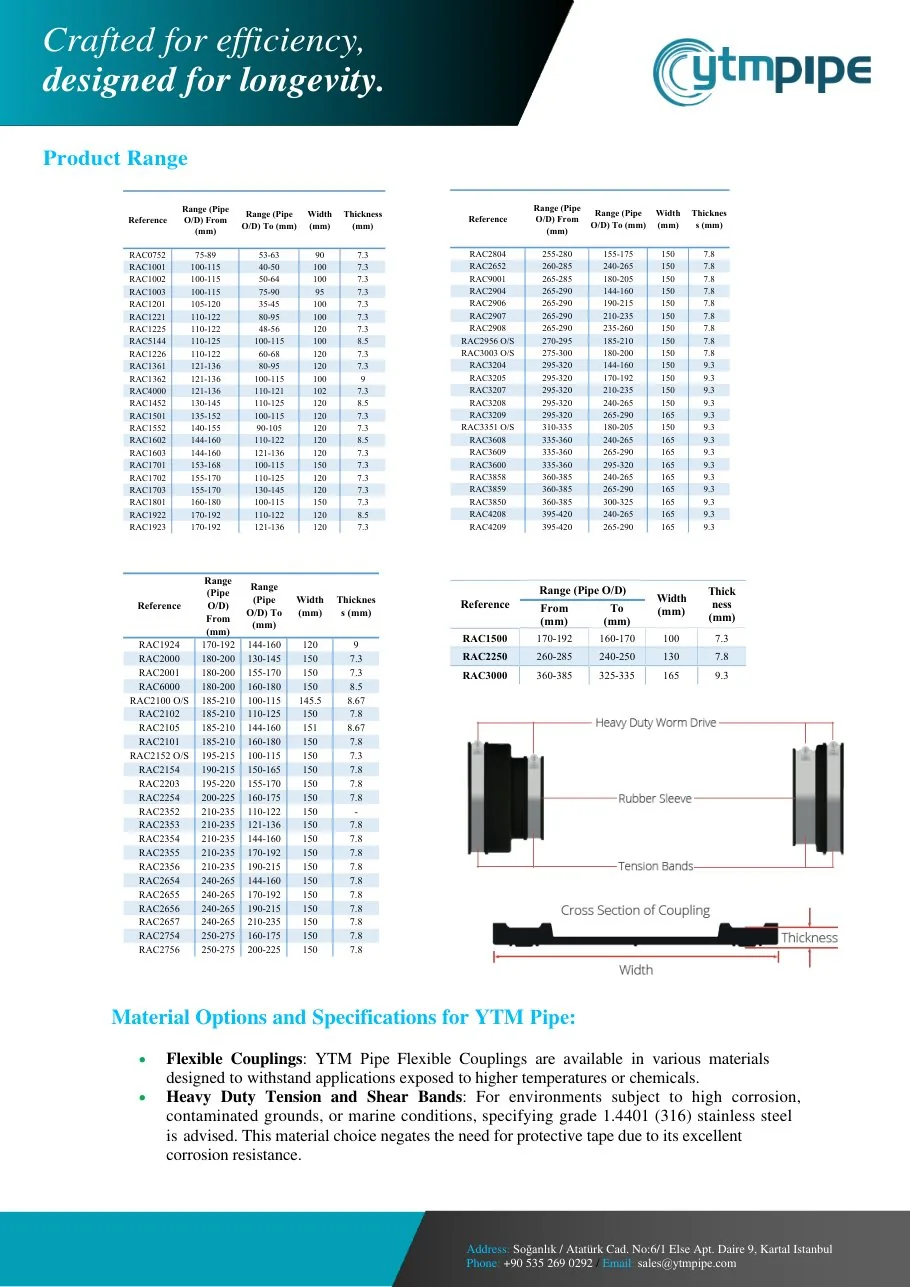

The Flexible Couplings datasheet is being issued in YTM Pipe format. Send us your requirement and our team will share the current technical documentation with your quotation.
ISO 9001:2015 certified quality
Available on request
How to Order
Also in This Range
Questions & Answers
What is a flexible coupling?
A flexible coupling joins two plain-ended pipes using a rubber sleeve tightened by stainless steel clamp bands. It needs no welding, threading or flanges, tolerates small differences in outside diameter, and is widely used on drains, sewers and repairs.
What size range do you supply for flexible couplings?
65–620 mm (Standard RSC). Other sizes can usually be supplied on request — send your requirement for confirmation.
Is a technical datasheet available?
Yes — the datasheet is being issued in YTM Pipe format and is available on request; our team sends it with your quotation.
How do I get a price?
Send size, specification and quantity through the Request-a-Quote form, WhatsApp or [email protected] — our team responds within one business day.
Flexible Couplings. Specified. Checked. Delivered.
Manufactured and supplied to the governing standard, inspected and documented before dispatch.
