Dismantling Joints

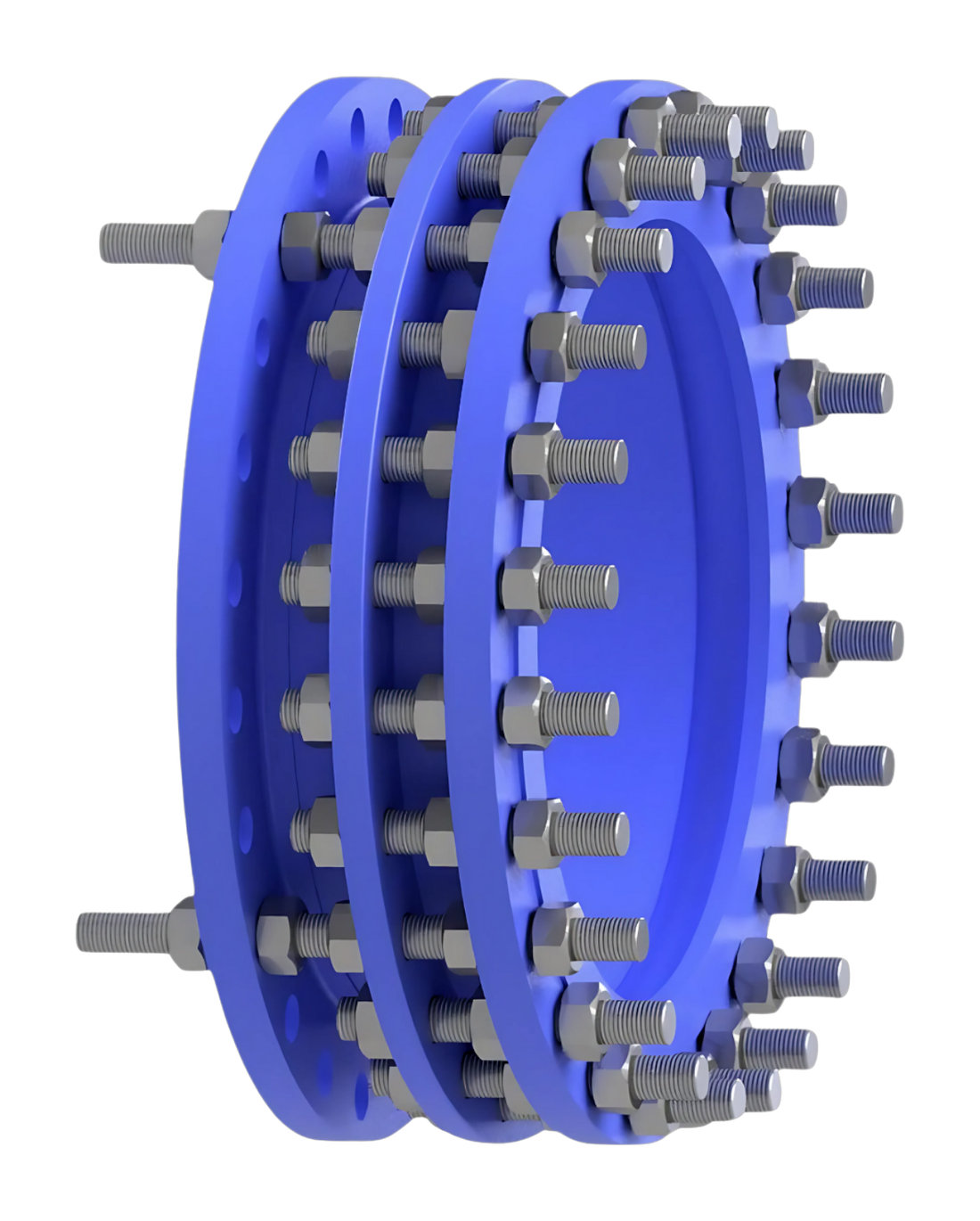

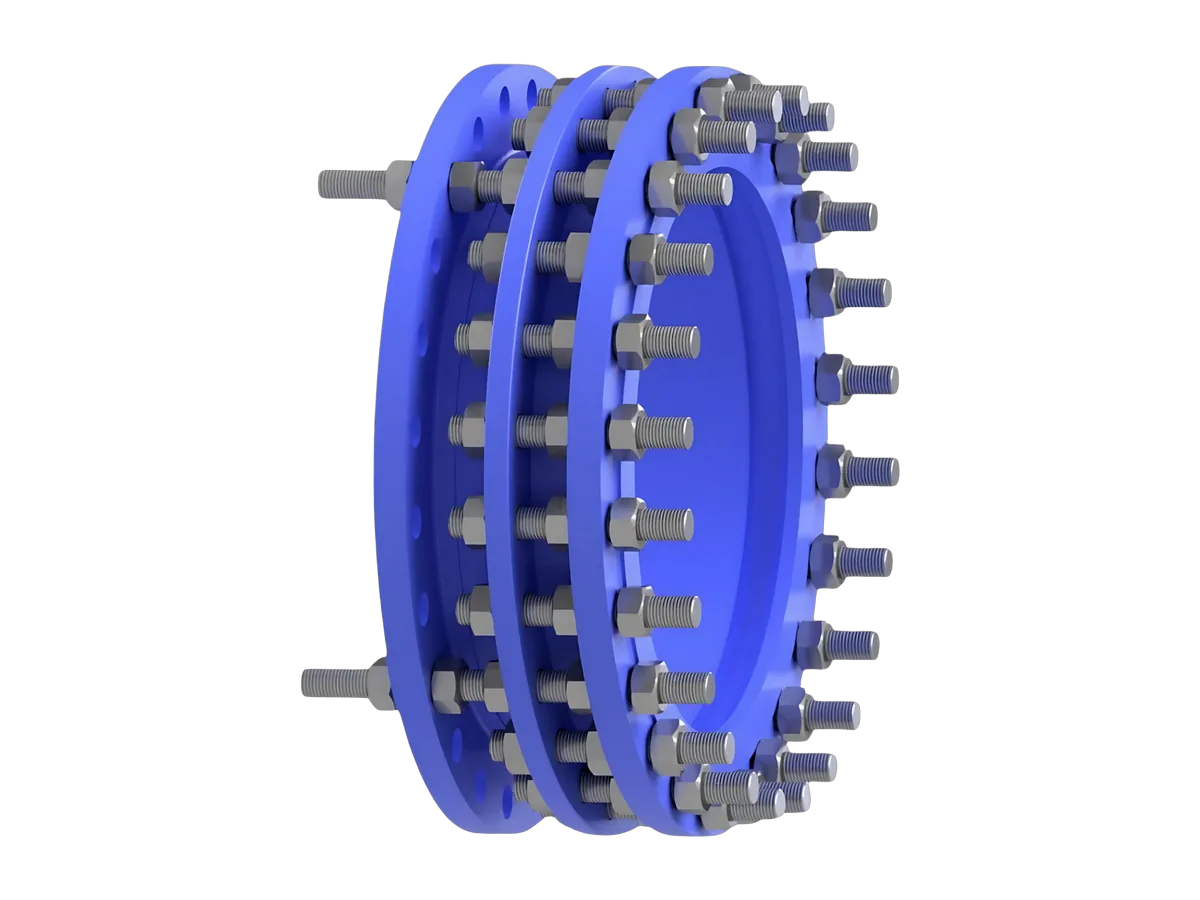

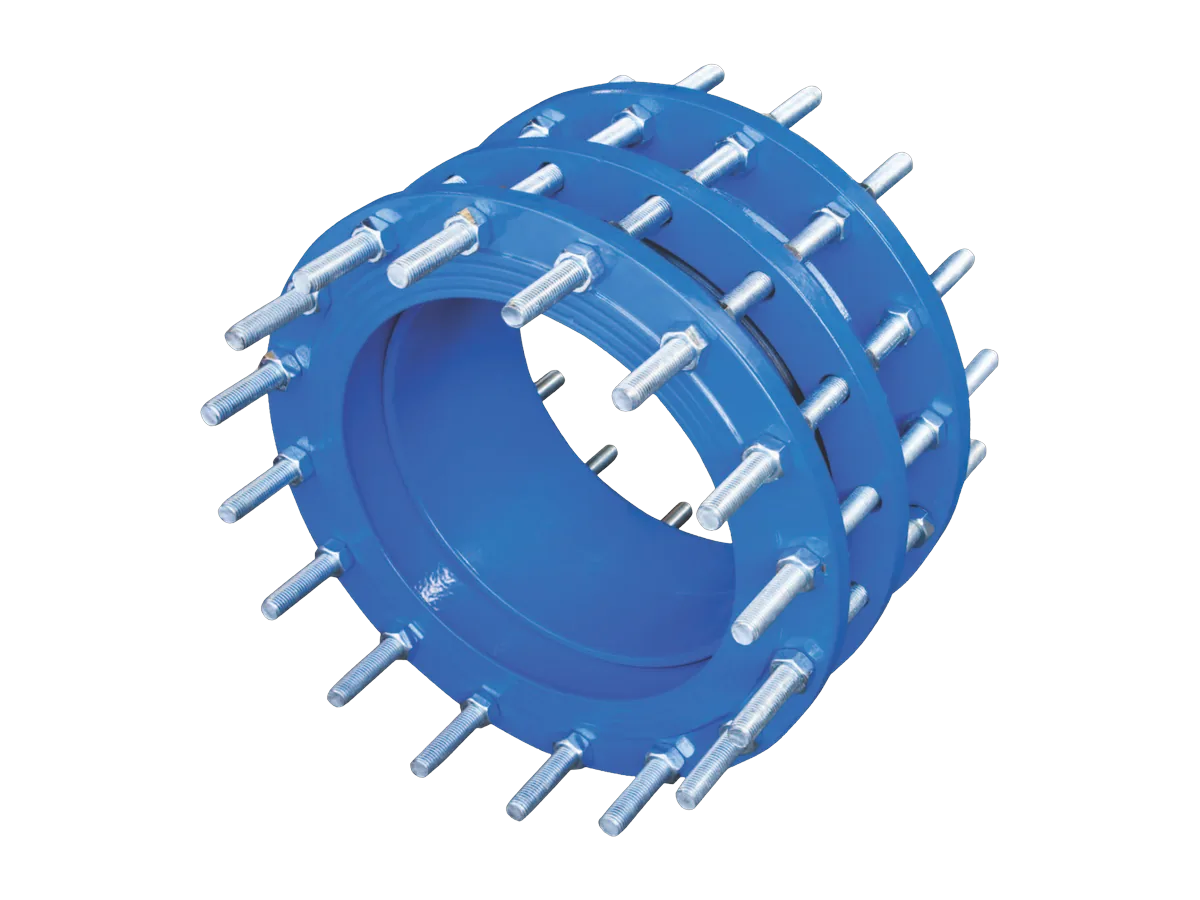

A flanged dismantling joint bolted between two flanges so valves, meters and fittings can be installed, removed or serviced without cutting or disturbing the rest of the pipeline. Its adjustable length takes up tolerance and absorbs longitudinal movement.
Technical Data
| Dismantling Joints — specification | |
|---|---|
| Size range | DN50–DN3000 |
| Standard | EN / AWWA / DIN |
| Body | Ductile / carbon steel |
| Pressure | PN10 / 16 / 25 |
| Adjustment | Longitudinal (tie-bolts) |
| Coating | Fusion-bonded epoxy |

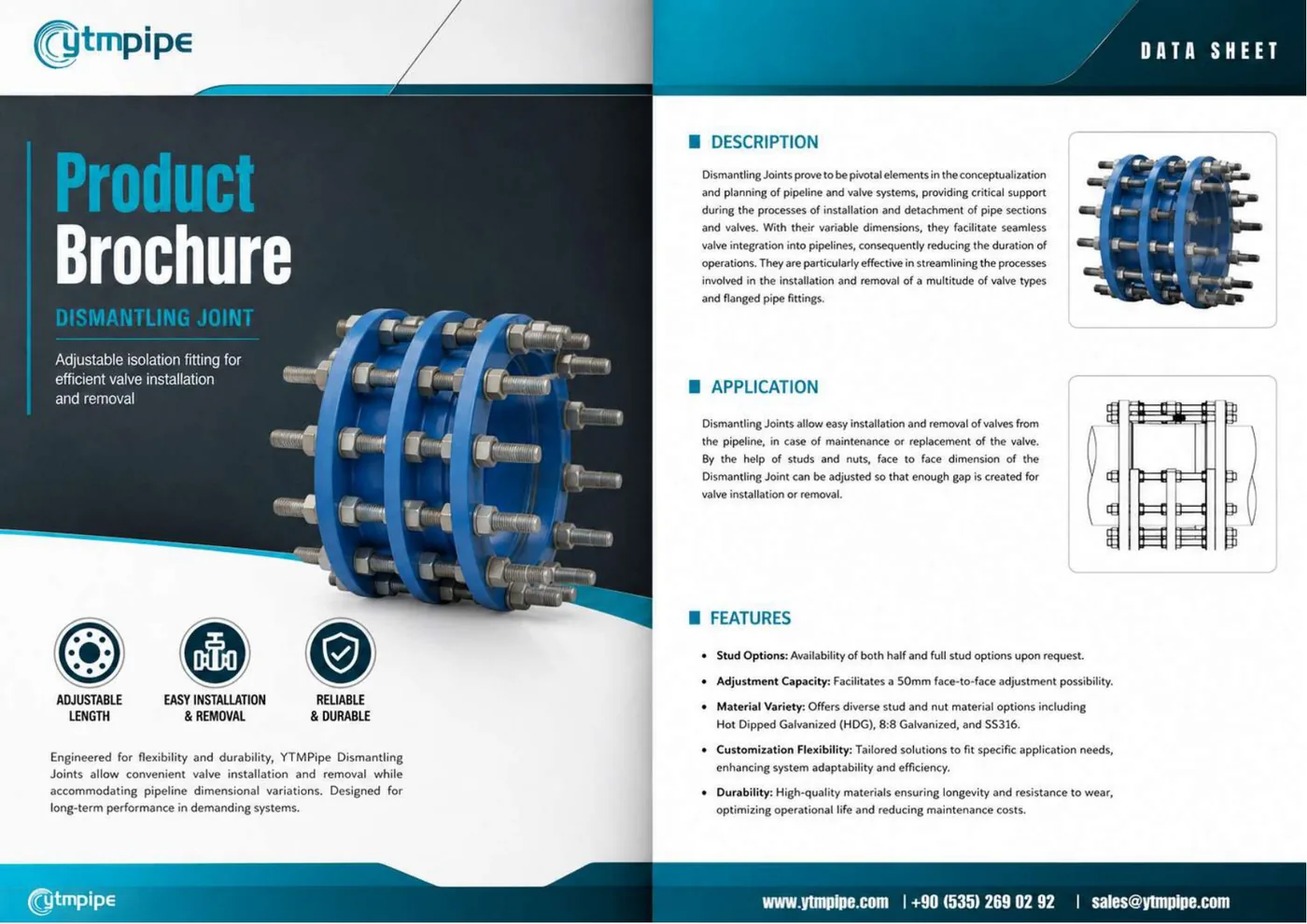

Datasheet & Documents
The Dismantling Joints datasheet is being issued in YTM Pipe format. Send us your requirement and our team will share the current technical documentation with your quotation.
ISO 9001:2015 certified quality
Available on request
How to Order
Also in This Range
Questions & Answers
What is a dismantling joint?
A dismantling joint is an adjustable flanged spool bolted into a line beside a valve, pump or meter. Slackening its tie bars lets the joint shorten so the equipment can be lifted out without cutting pipe or springing the line.
What is the difference between a dismantling joint and a flexible coupling?

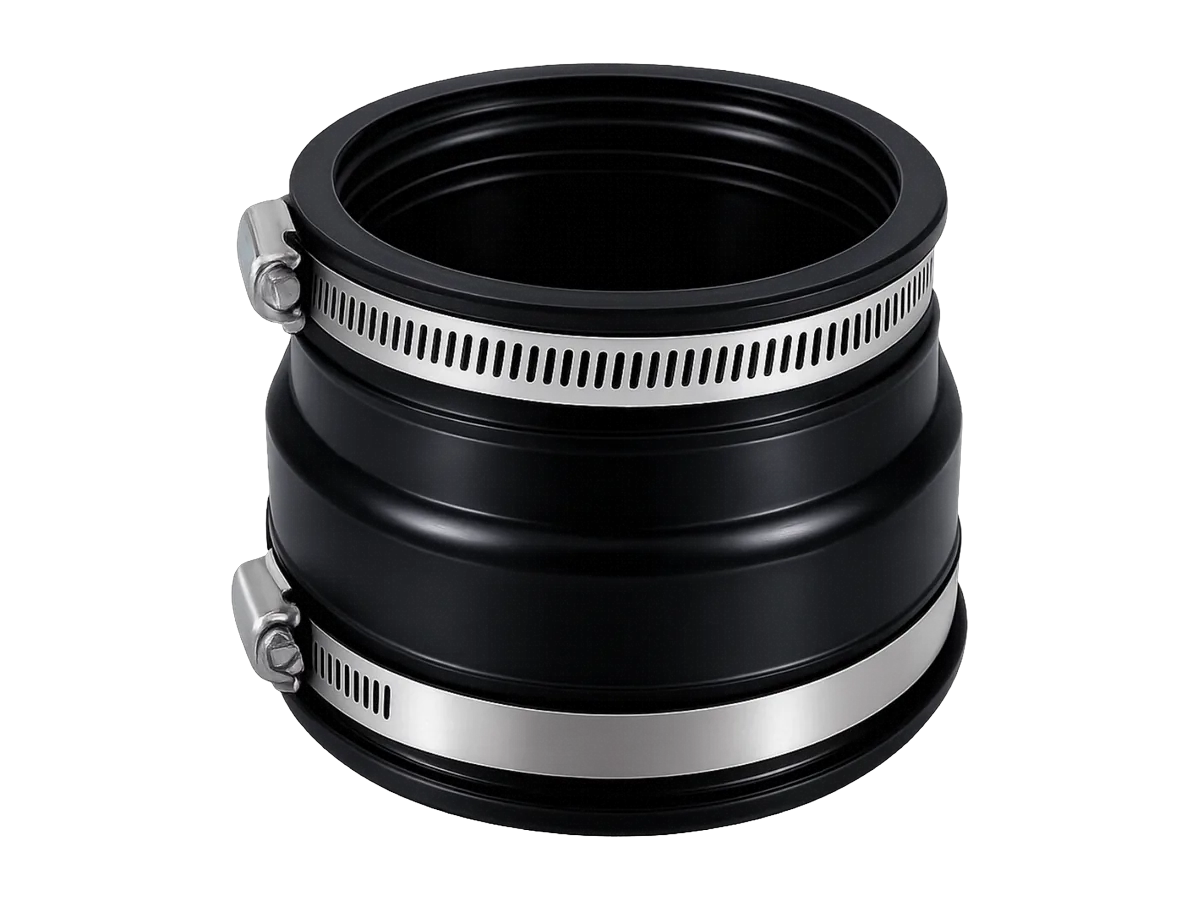

A dismantling joint is flanged and adjustable in length, made to take equipment out of a line and to absorb longitudinal tolerance. A flexible coupling joins two plain-ended pipes and accommodates angular deflection and small diameter differences, but is not intended for repeated dismantling.
What size range do you supply for dismantling joints?
DN50–DN3000. Other sizes can usually be supplied on request — send your requirement for confirmation.
Is a technical datasheet available?
Yes — the datasheet is being issued in YTM Pipe format and is available on request; our team sends it with your quotation.
How do I get a price?
Send size, specification and quantity through the Request-a-Quote form, WhatsApp or [email protected] — our team responds within one business day.
