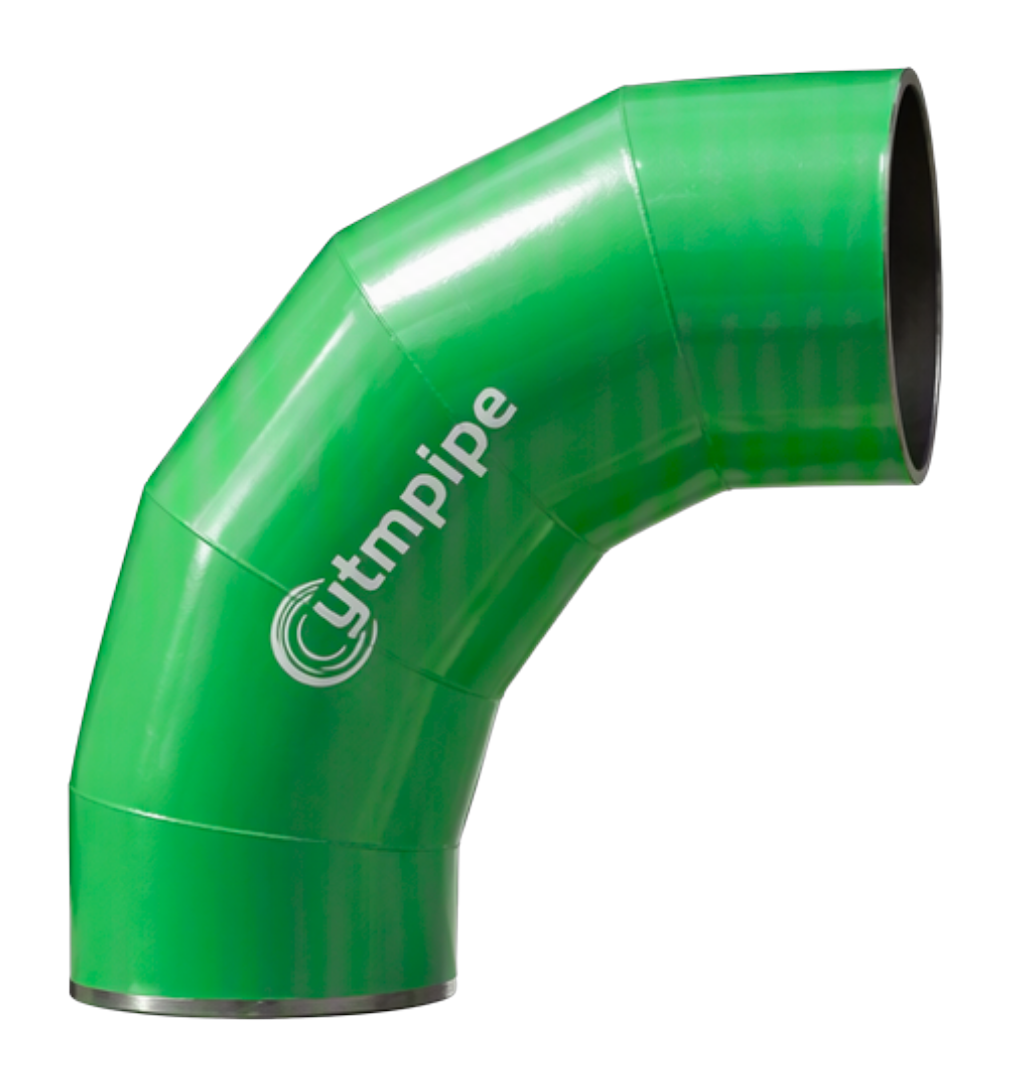

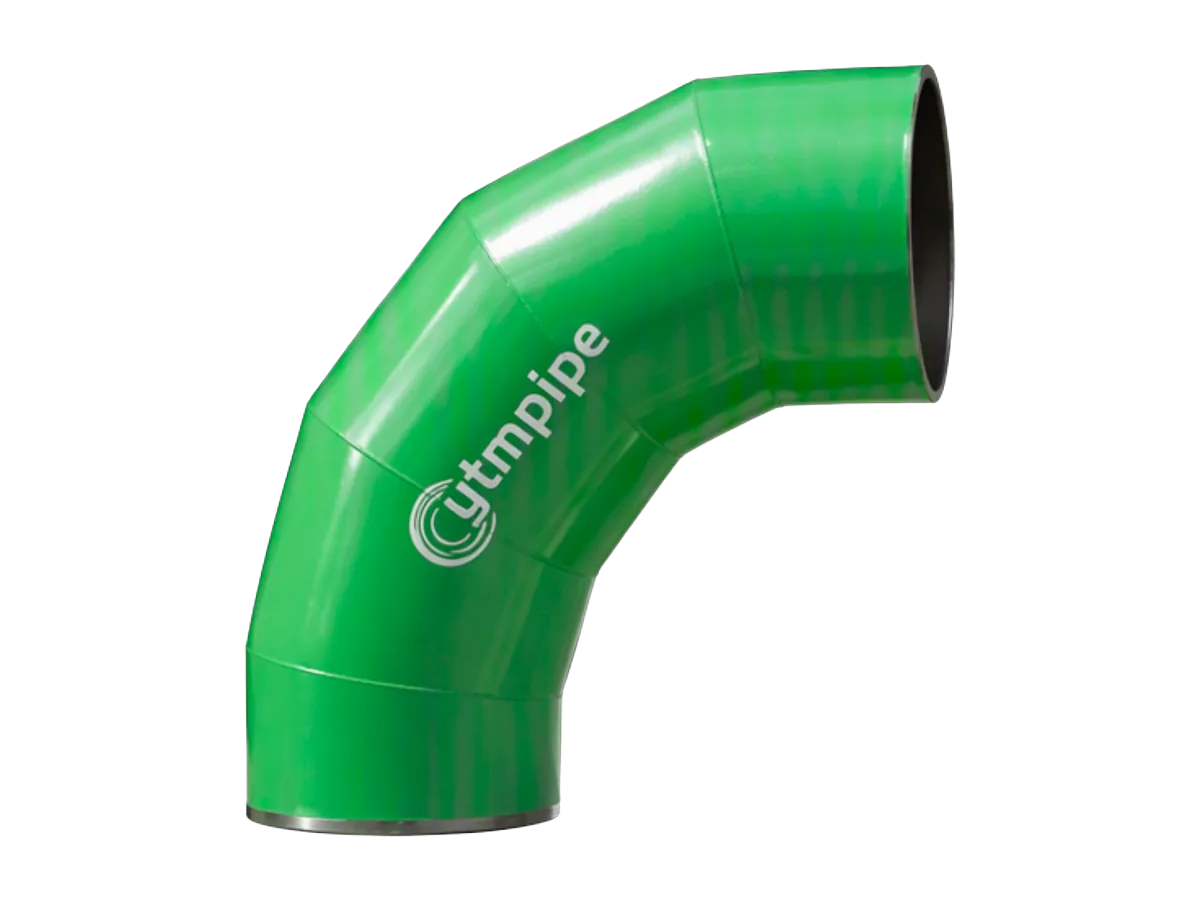

Mitered Elbows
Large-bore elbows fabricated from welded pipe or plate segments — any angle and bend radius from 1.5D to 10D, made to order where seamless fittings are impractical.
Technical Data
| Mitered Elbows — specification | |
|---|---|
| Size range | 12″–100″ large bore |
| Bend radius | 1.5D–10D selectable |
| Angles | Any° made to order |
| Options | CS / SS material |
| Design standard | Miter design to ASME B31.3 / EN 13480-3 |
| Angle / radius | Any angle · 1.5D–10D |
| Material | CS (S235–S355, A234 WPB); stainless · plate EN 10025 / ASTM A283, A516 |
| Welding / NDE | ASME IX / ISO 15614 |
| Ends | Butt-weld, bevelled |
| Plate — EN 10025 | S235JR · S275 · S355 |
| ASTM A234 | WPB (carbon, BW) |
| ASTM A403 | WP304 · WP316 (stainless) |
| Plate — ASTM | A283 · A516 |
Key points
- Fire-water & cooling water lines
- Large-bore water transmission mains
- Geohazard / seismic-resilient pipelines
- Sewage, mining & slurry systems
- Refinery & petrochemical (older plants)

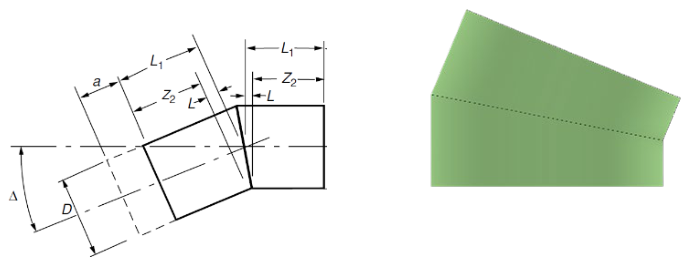

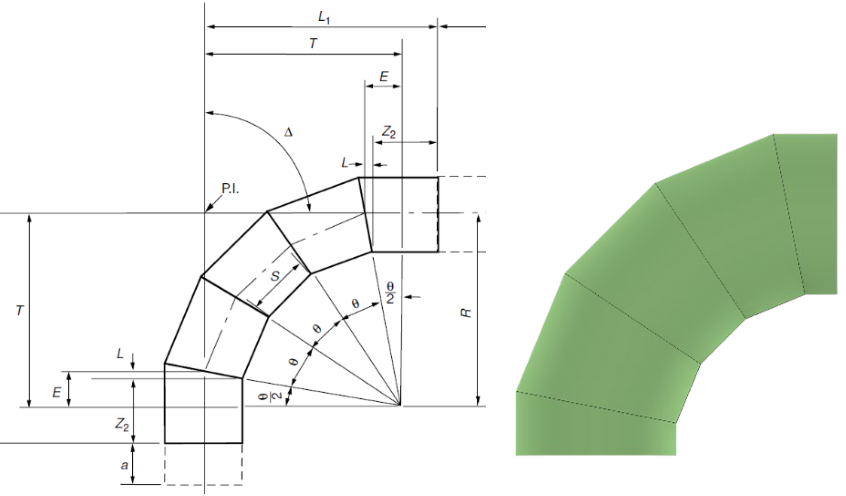

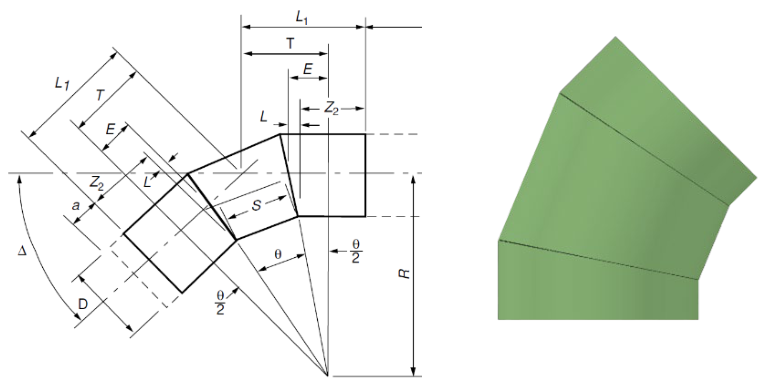

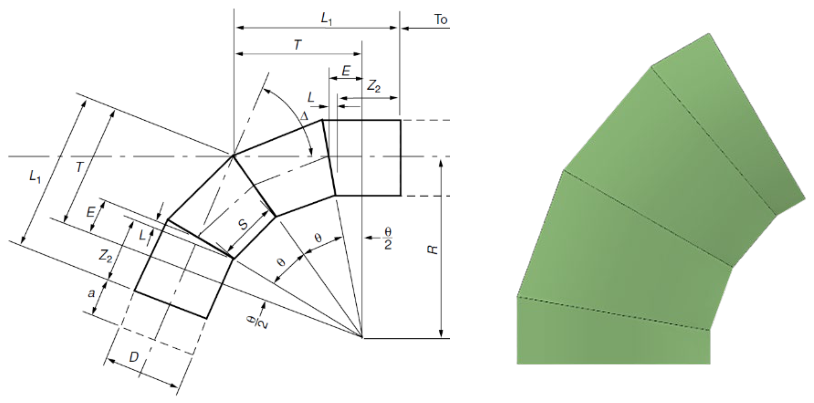

Drawing & Dimensions
Datasheet & Documents

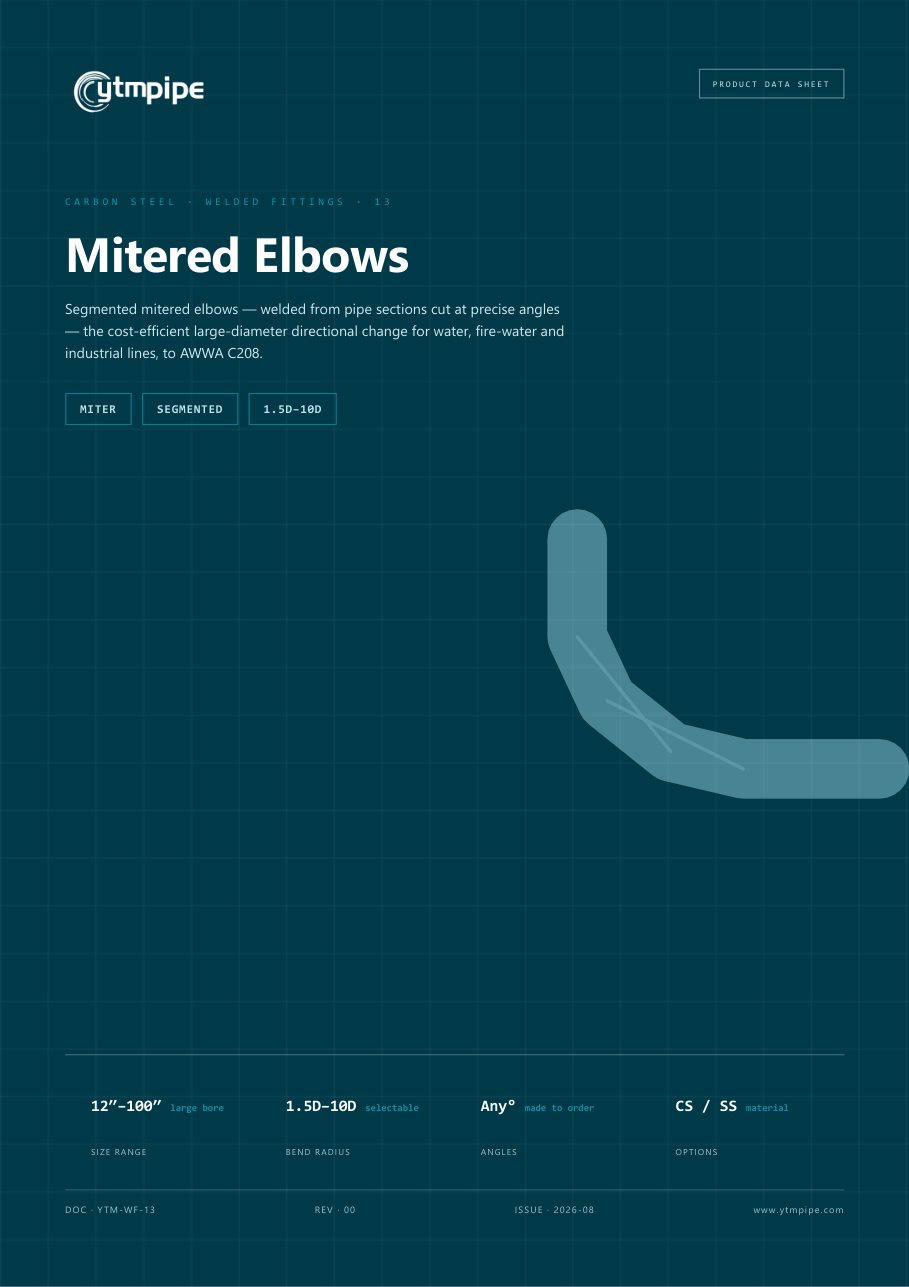

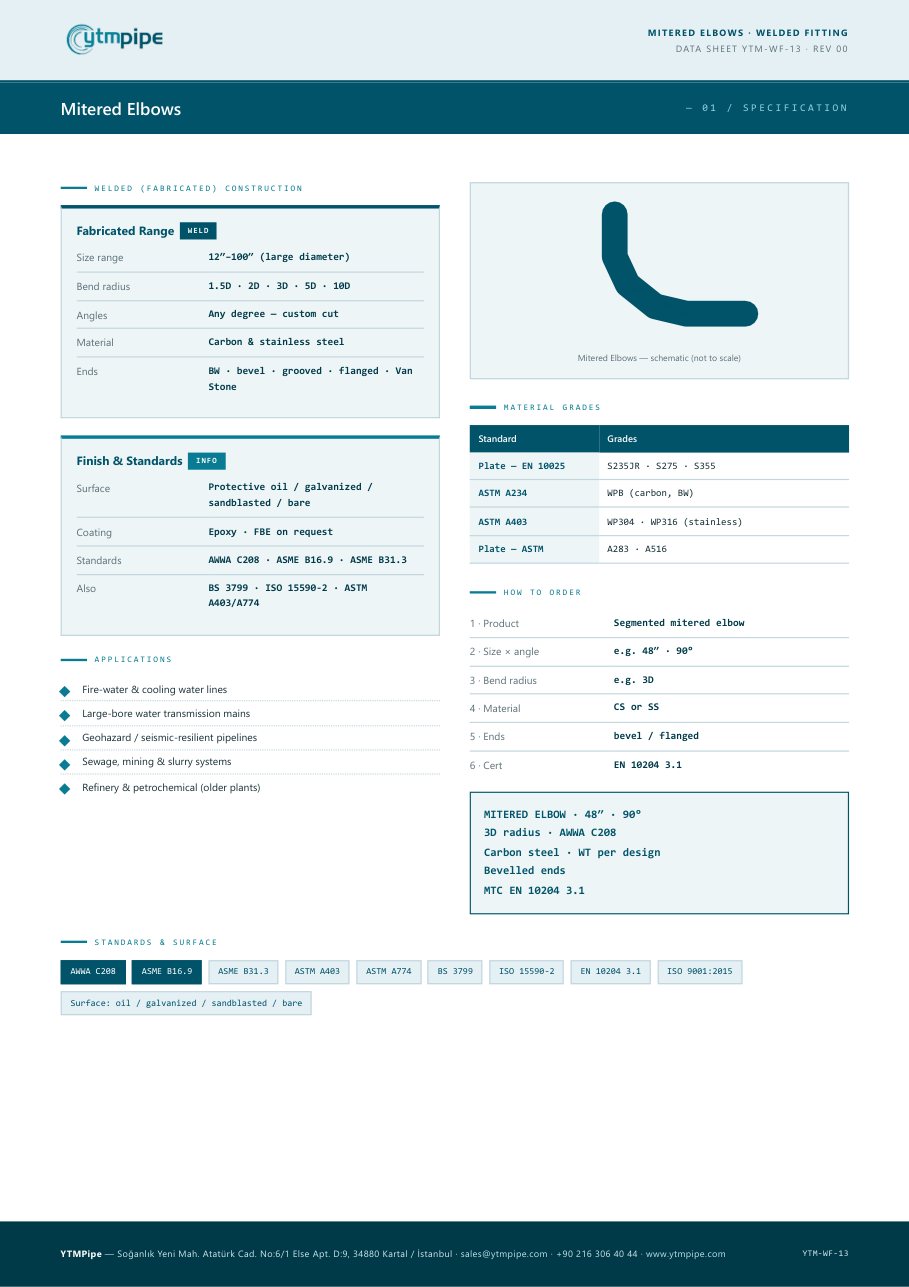

The official Mitered Elbows datasheet — specification, materials, standards and the complete dimension tables.
ISO 9001:2015 certified quality
How to Order
Worked example
MITERED ELBOW · 48″ · 90°
3D radius · AWWA C208
Carbon steel · WT per design
Bevelled ends
MTC EN 10204 3.1Also in This Range
Questions & Answers
What is a mitered elbow?
A mitered elbow is a change of direction fabricated from straight pipe segments cut at an angle and welded together, rather than formed as a single piece. It is used at large diameters and non-standard angles where a wrought buttweld elbow is unavailable or uneconomical, and is designed to ASME B31.3 or AWWA C208.
What size range do you supply for mitered elbows?
12″–100″ large bore. Other sizes can usually be supplied on request — send your requirement for confirmation.
Which standards and grades are available?
Plate — EN 10025: S235JR · S275 · S355 · ASTM A234: WPB (carbon, BW) · ASTM A403: WP304 · WP316 (stainless). See the datasheet for the complete list.
What materials are offered?
CS (S235–S355, A234 WPB); stainless · plate EN 10025 / ASTM A283, A516.
Is a technical datasheet available?
Yes — the official YTM Pipe datasheet with dimensions, materials and standards can be downloaded on this page.
How do I get a price?
Send size, specification and quantity through the Request-a-Quote form, WhatsApp or [email protected] — our team responds within one business day.
Mitered Elbows. Specified. Checked. Delivered.
Manufactured and supplied to the governing standard, inspected and documented before dispatch.
