Blind Flanges

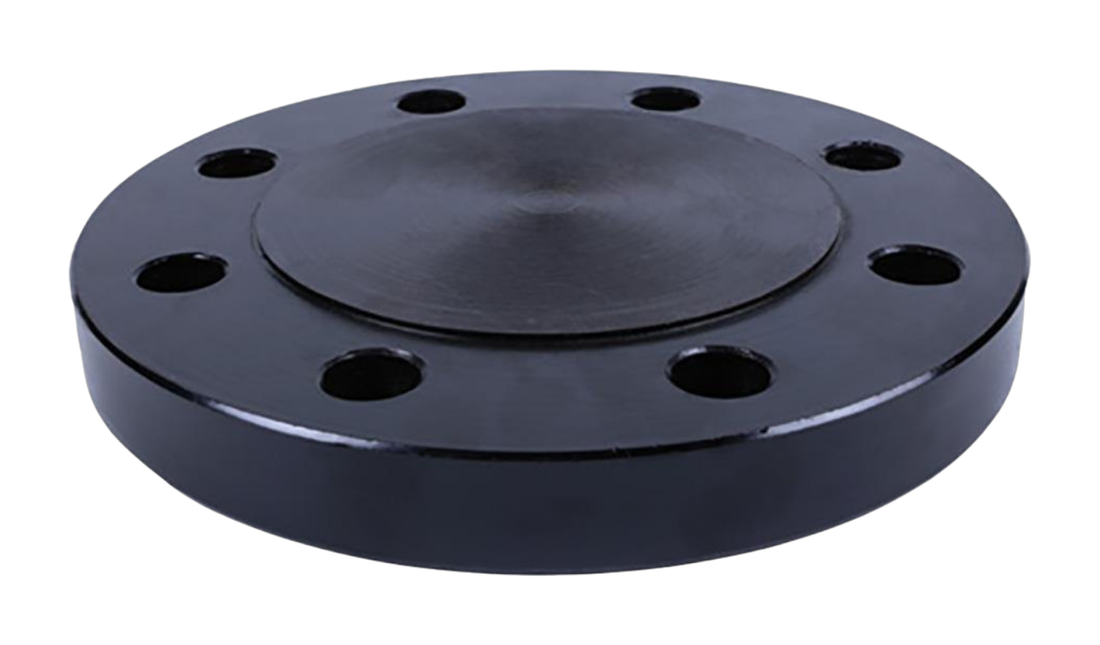

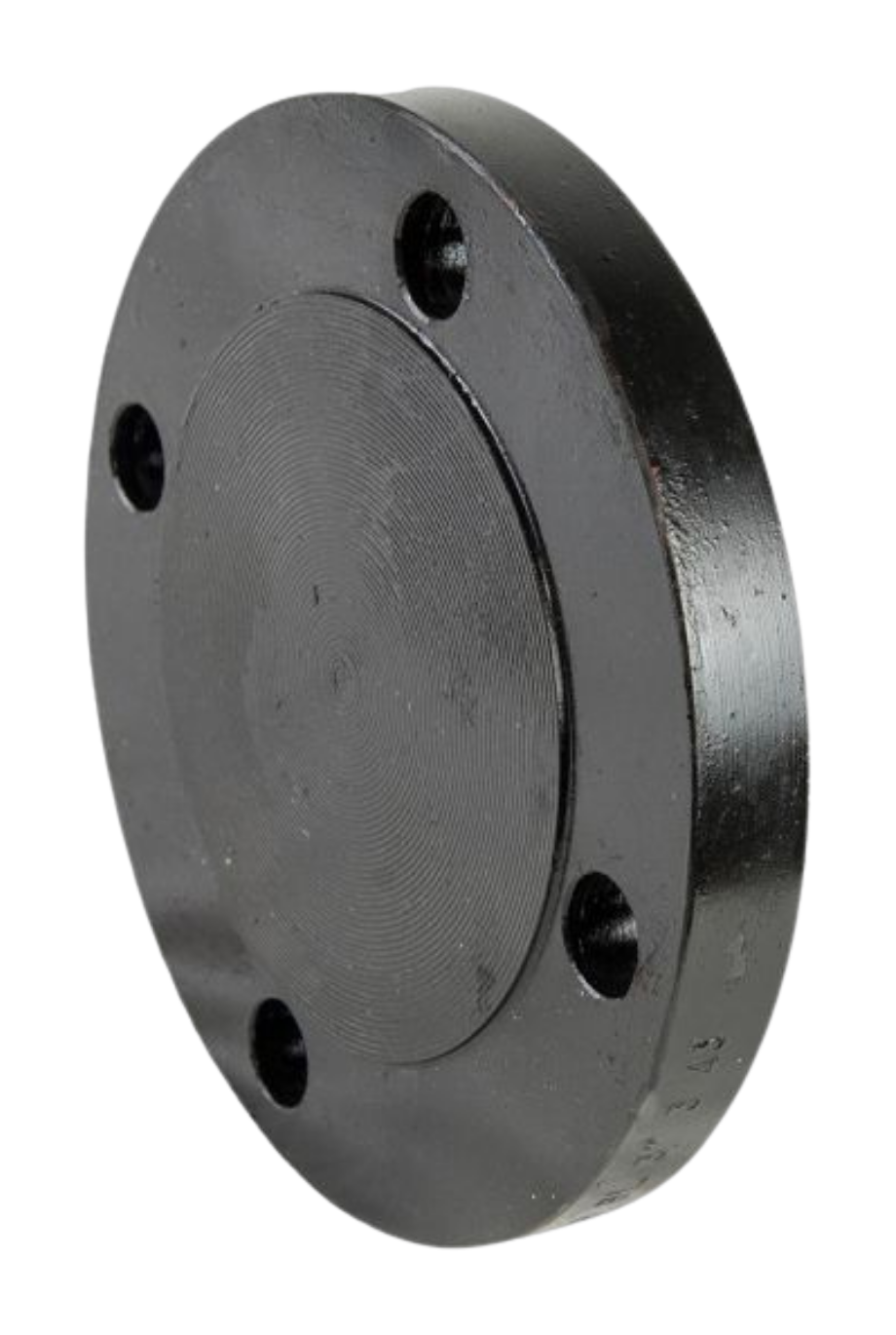

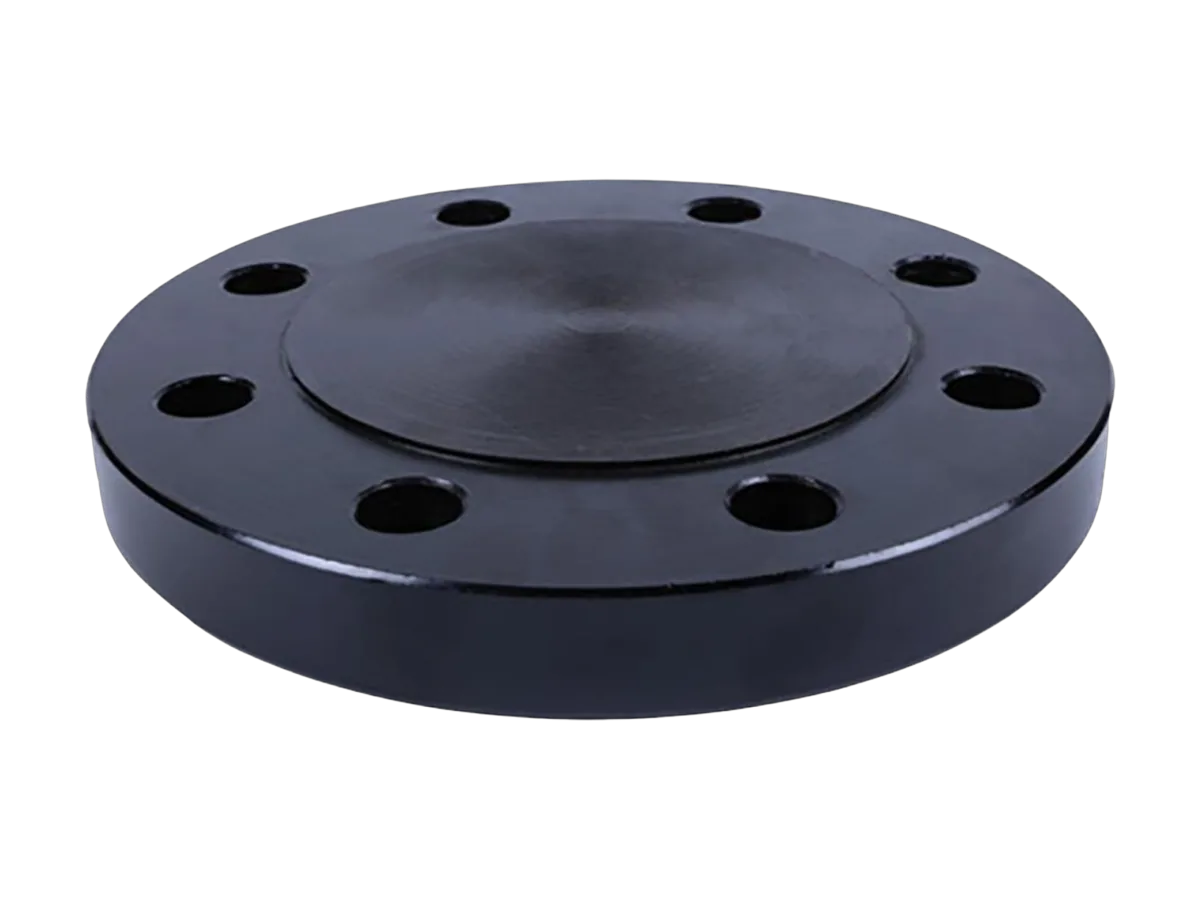

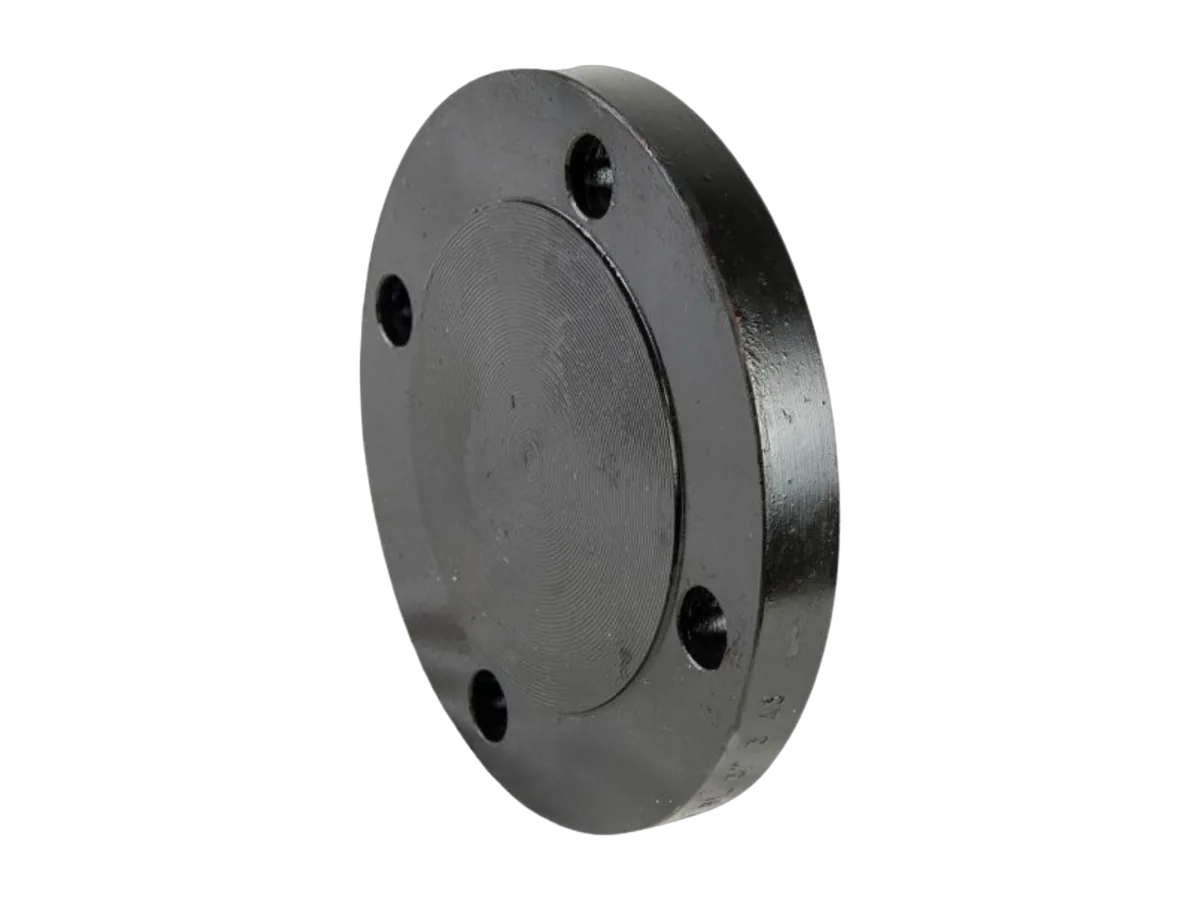

A solid, bore-less flange that bolts to a mating flange to seal the end of a piping run, a vessel nozzle or a valve. It carries full system pressure across its face and unbolts easily for inspection or a future tie-in.
Technical Data
| Blind Flanges — specification | |
|---|---|
| Size range | ½–60″ NPS |
| Rating | 150–2500 ASME class |
| EN rating | PN 2.5–400 EN 1092-1 |
| Faces | RF·FF·RTJ facing |
| Pressure | Class 2500 ≤12" · 1500 ≤24" · 900 above |
| Standards | ASME B16.5 / B16.47 · EN 1092-1 |
| Material | Carbon steel A105, P250GH; stainless |
| Facing | RF / FF / RTJ |
| Bore | None — solid blank |
| ASTM A105 | Forged carbon steel |
| ASTM A182 | F304/F304L · F316/F316L (stainless) |
| ASTM A350 LF2 | Low-temperature carbon steel |
| EN 1092-1 | P245GH · P265GH · 1.4301 · 1.4404 |
Key points
- Seal pipeline ends & dead legs
- Vessel, manway & nozzle covers
- Test, inspection & isolation points
- Future tie-in & expansion points
- Instrument take-off blanks
Drawing & Dimensions

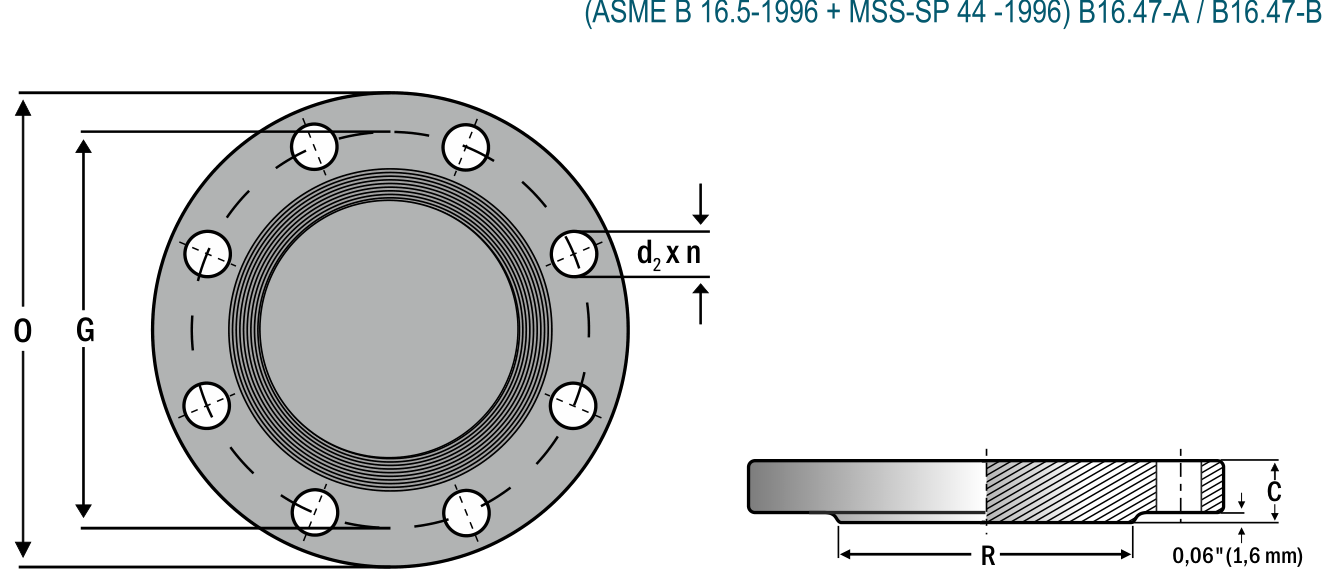

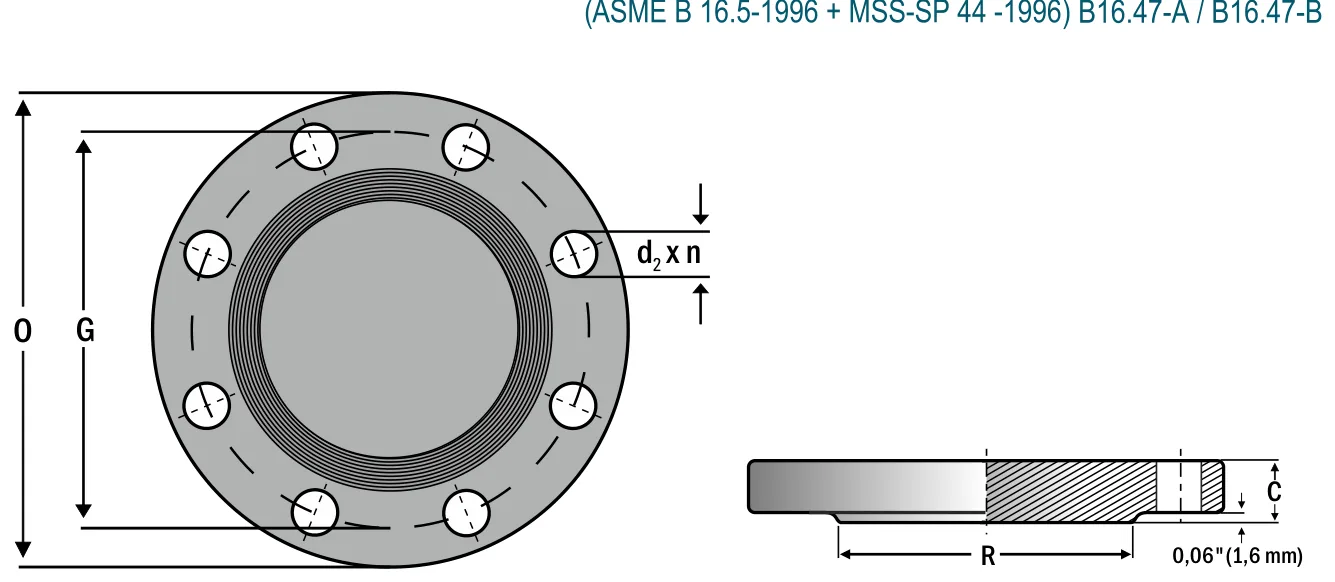

Dimensioned drawing from the YTM Pipe flange catalogue (Class 150 shown). Dimensions and drilling to ASME B16.5 / B16.47 — complete class tables in the datasheet download.
Click the drawing to enlargeDatasheet & Documents

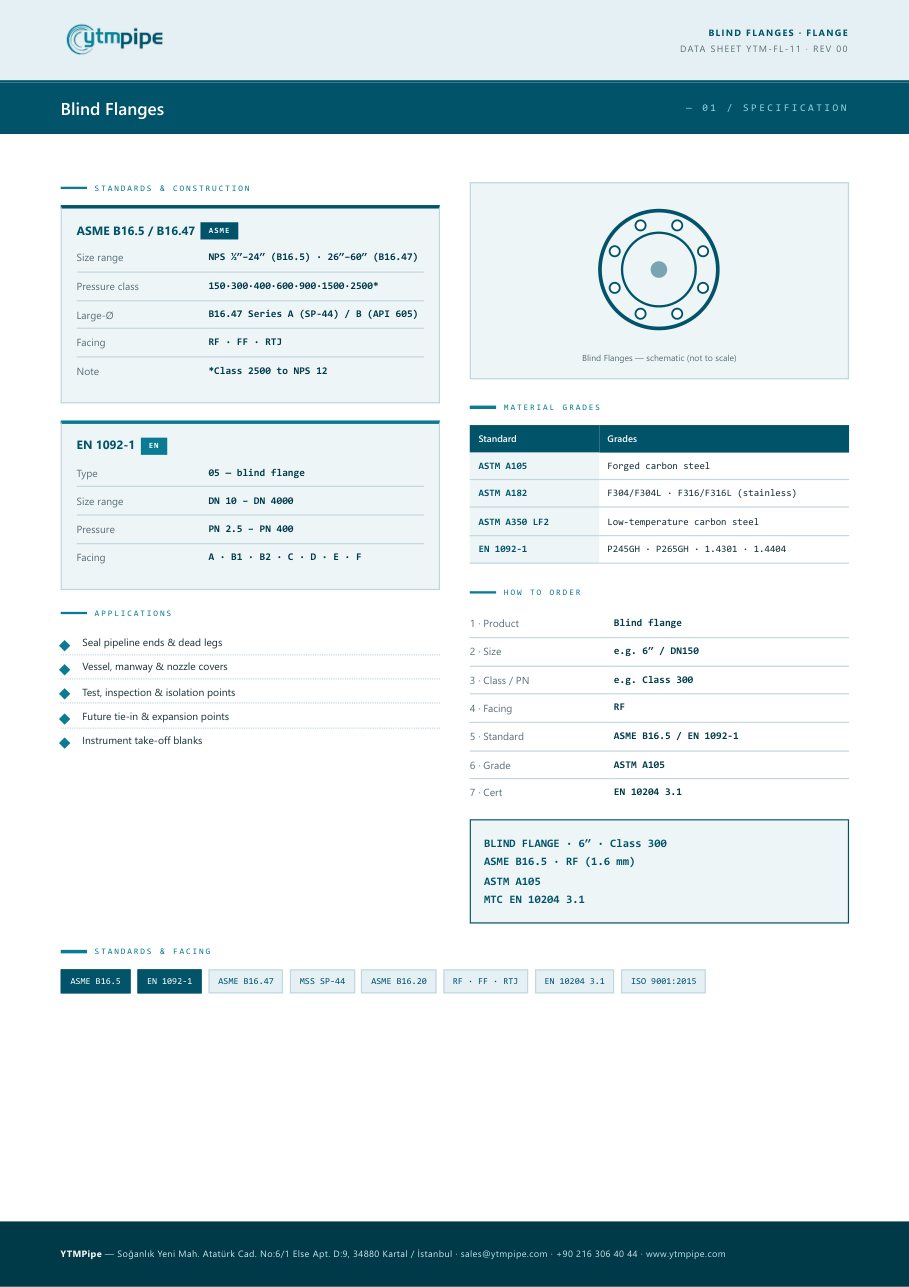

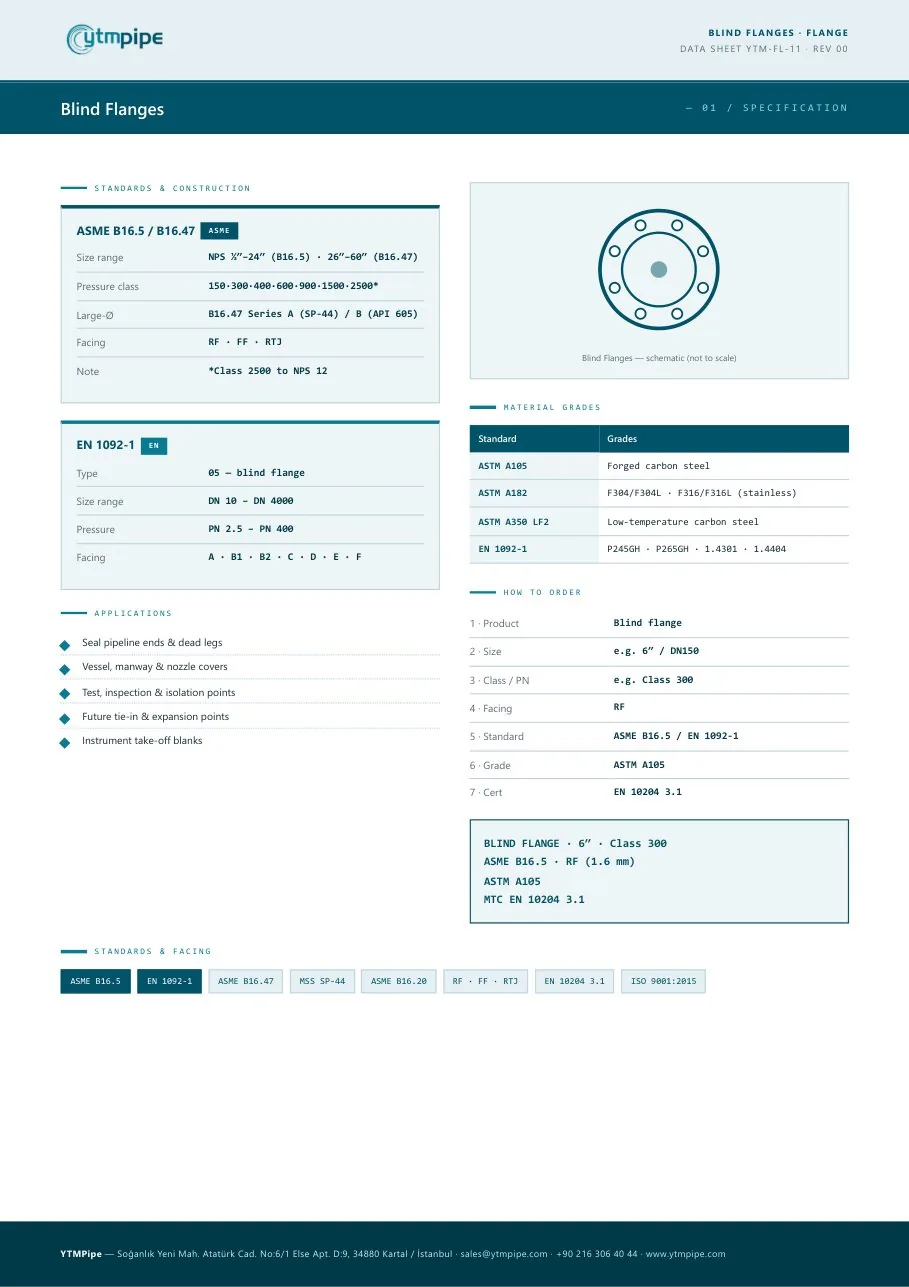

The official Blind Flanges datasheet — specification, materials, standards and the complete dimension tables.
ISO 9001:2015 certified quality
How to Order
Worked example
BLIND FLANGE · 6″ · Class 300
ASME B16.5 · RF (1.6 mm)
ASTM A105
MTC EN 10204 3.1Also in This Range
Questions & Answers
What is a blind flange?
A blind flange is a solid disc flange with no bore, bolted to the end of a line, a nozzle or a valve to close it off. It lets the joint be opened later for inspection or extension, unlike a welded cap. Dimensions follow ASME B16.5 or EN 1092-1.
What pressure classes are available?
Class 150, 300, 600, 900, 1500 and 2500 to ASME B16.5, and PN6 to PN100 to EN 1092-1. Class ratings are size dependent — Class 2500 to 12", Class 1500 to 24" — so confirm size and class together.
What size range do you supply for blind flanges?
½–60″ NPS. Other sizes can usually be supplied on request — send your requirement for confirmation.
Which standards and grades are available?
ASTM A105: Forged carbon steel · ASTM A182: F304/F304L · F316/F316L (stainless) · ASTM A350 LF2: Low-temperature carbon steel. See the datasheet for the complete list.
What materials are offered?
Carbon steel A105, P250GH; stainless.
Is a technical datasheet available?
Yes — the official YTM Pipe datasheet with dimensions, materials and standards can be downloaded on this page.
How do I get a price?
Send size, specification and quantity through the Request-a-Quote form, WhatsApp or [email protected] — our team responds within one business day.
