Pipe Nipples

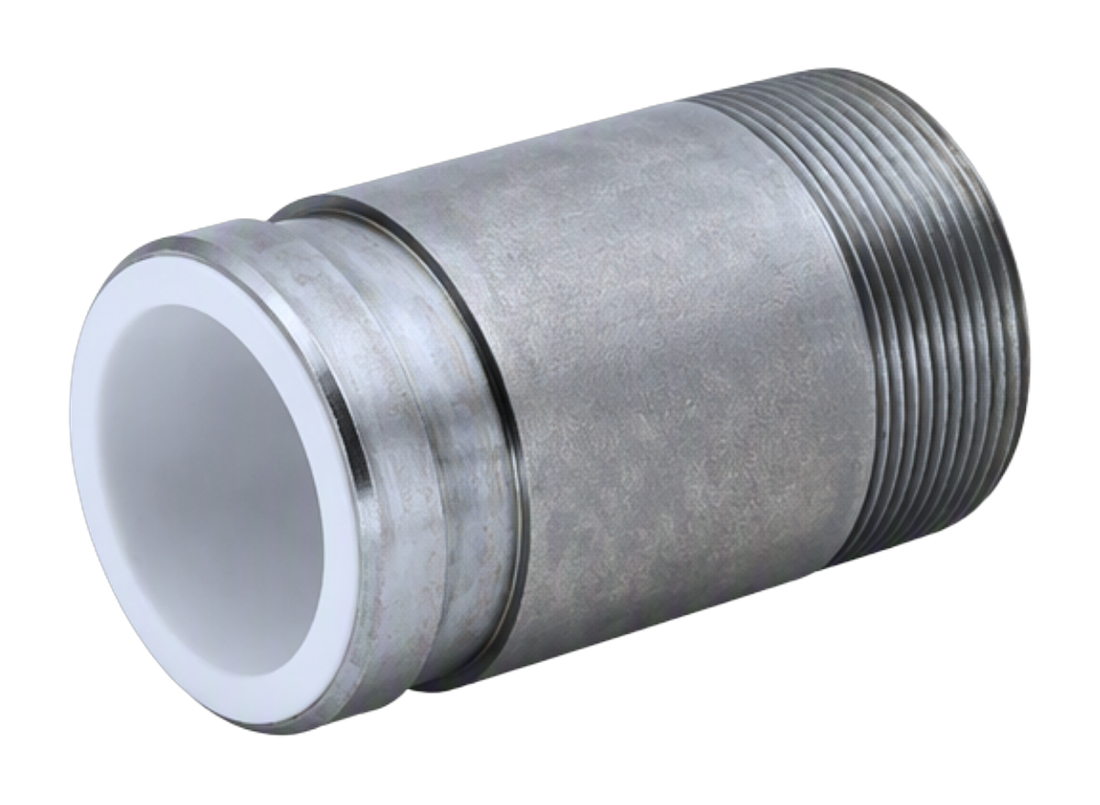

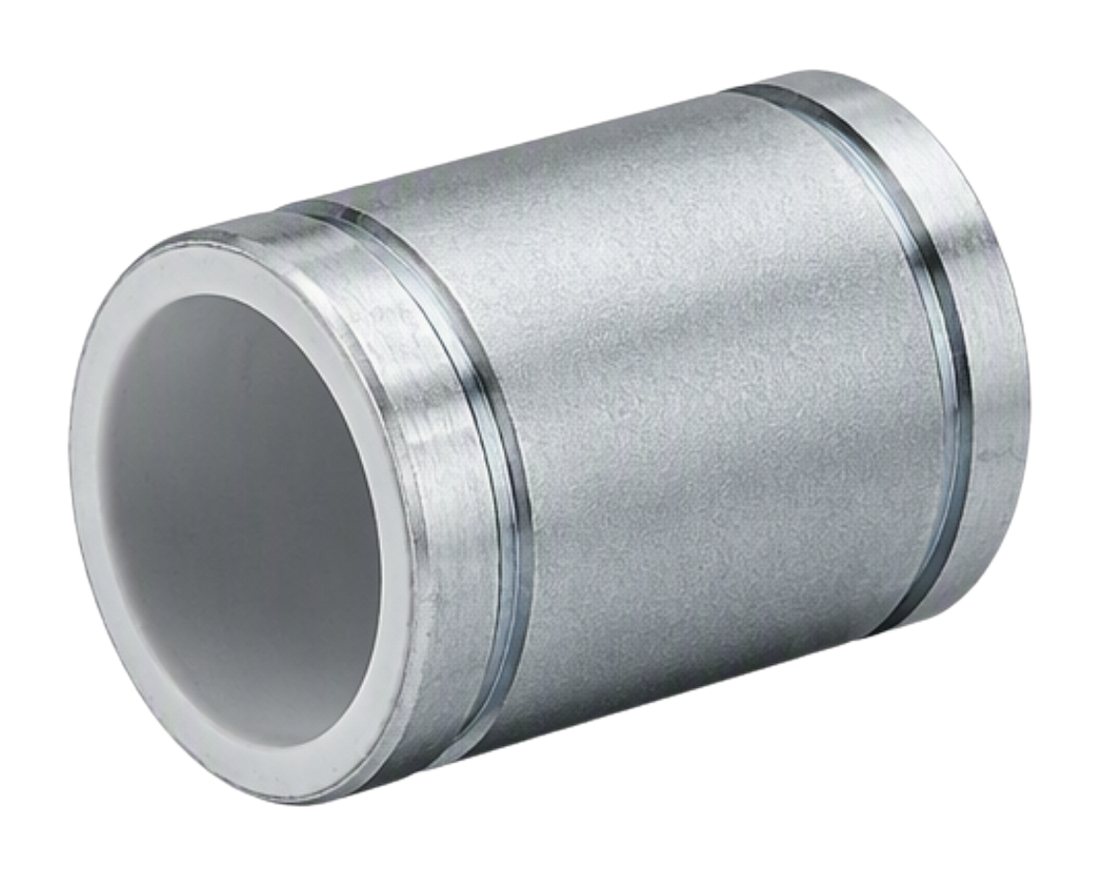

Galvanized dielectric pipe nipples with a PE or PEX liner that isolates the connection between dissimilar metals — supplied thread × thread, groove × groove and thread × groove, plus double-screw male nipples.
Technical Data
| Pipe Nipples — specification | |
|---|---|
| Max pressure | 20.6 bar (300 psi) |
| Max temperature | 110 °C (PEX) · ~60 °C (PE) |
| Standard | ASTM A53 · ASME B1.20.1 |
| Liner | PEX (110 °C) · PE (≤60 °C) |
| End combinations | THD×THD · GRV×GRV · THD×GRV |
| Finish | Galvanized |
Datasheet & Documents

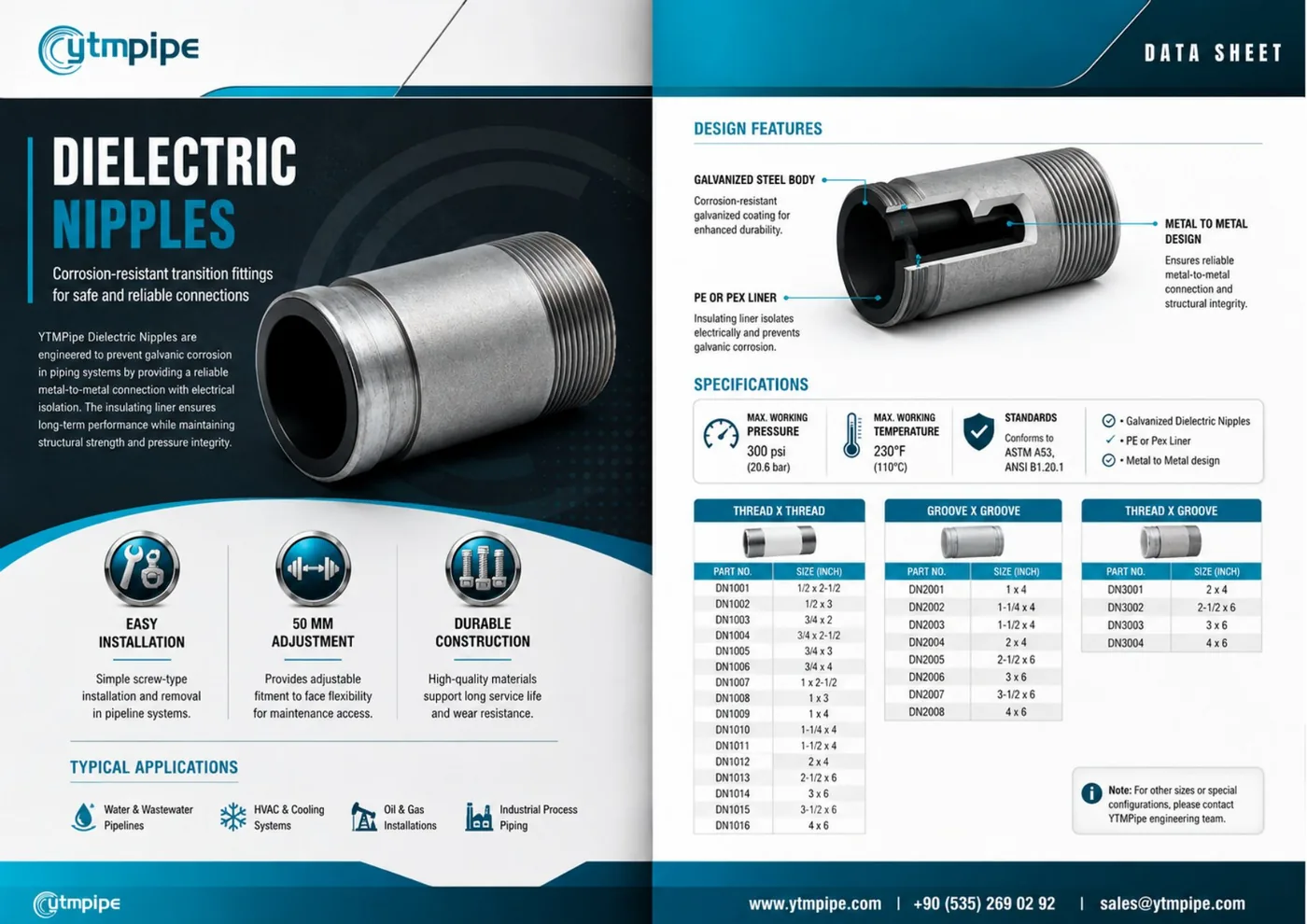

The official Pipe Nipples datasheet — specification, materials, standards and the complete dimension tables.
ISO 9001:2015 certified quality
How to Order
Also in This Range
Questions & Answers
What is a dielectric pipe nipple?
A dielectric nipple is a steel nipple with an internal plastic lining, usually PE or PEX, that isolates the pipe wall from the medium and breaks the electrical path between dissimilar metals. It is supplied with threaded, grooved or mixed ends.
What max pressure do you supply for pipe nipples?
20.6 bar (300 psi). Other sizes can usually be supplied on request — send your requirement for confirmation.
Is a technical datasheet available?
Yes — the official YTM Pipe datasheet with dimensions, materials and standards can be downloaded on this page.
How do I get a price?
Send size, specification and quantity through the Request-a-Quote form, WhatsApp or [email protected] — our team responds within one business day.
Pipe Nipples. Specified. Checked. Delivered.
Manufactured and supplied to the governing standard, inspected and documented before dispatch.
